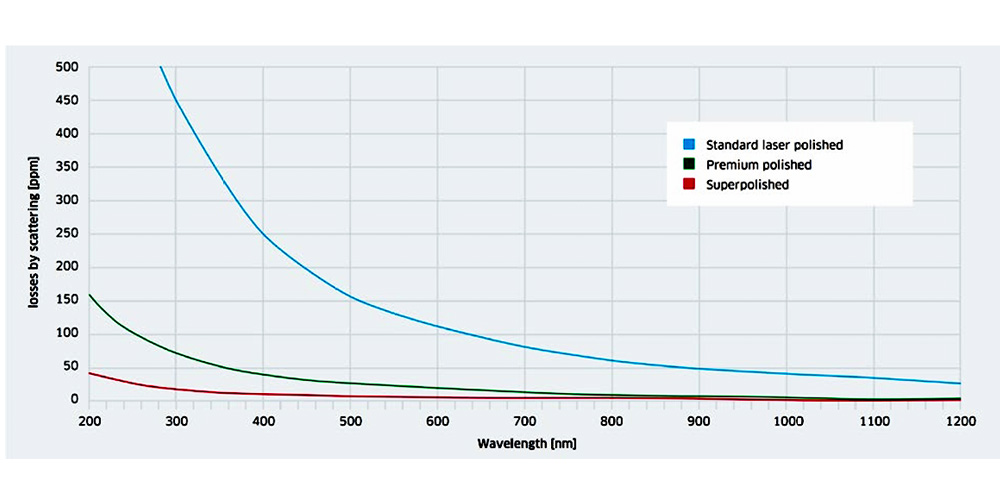

Bena Optics utilizes advanced shaping and polishing techniques, including CNC machining, to achieve initial surface accuracy. They perform preliminary polishing to reach standard optical surface roughness, followed by high-precision surface correction to meet final shape requirements, and finish with ultra-smooth surface polishing. The surface accuracy can reach nanometer levels, and surface roughness can be below 0.2 nm. Bena Optics employs cutting-edge polishing equipment such as IBF and MRF.

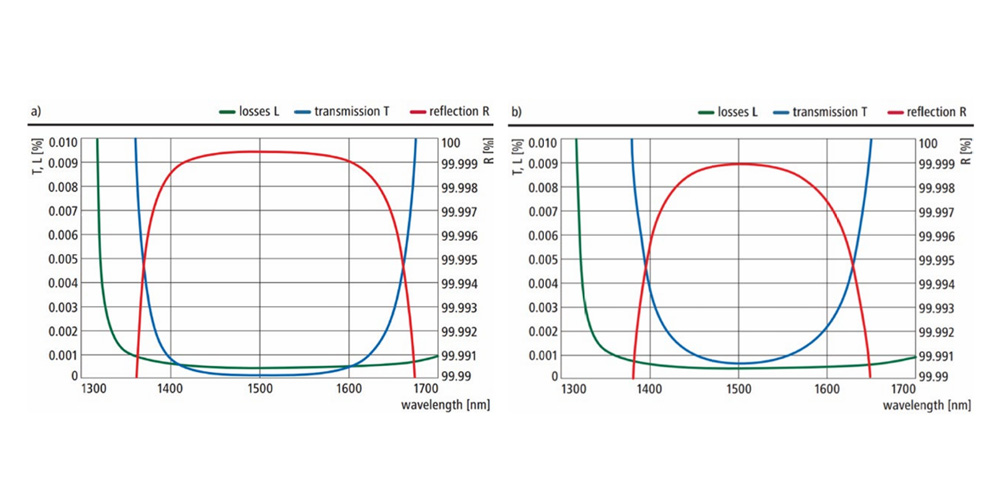

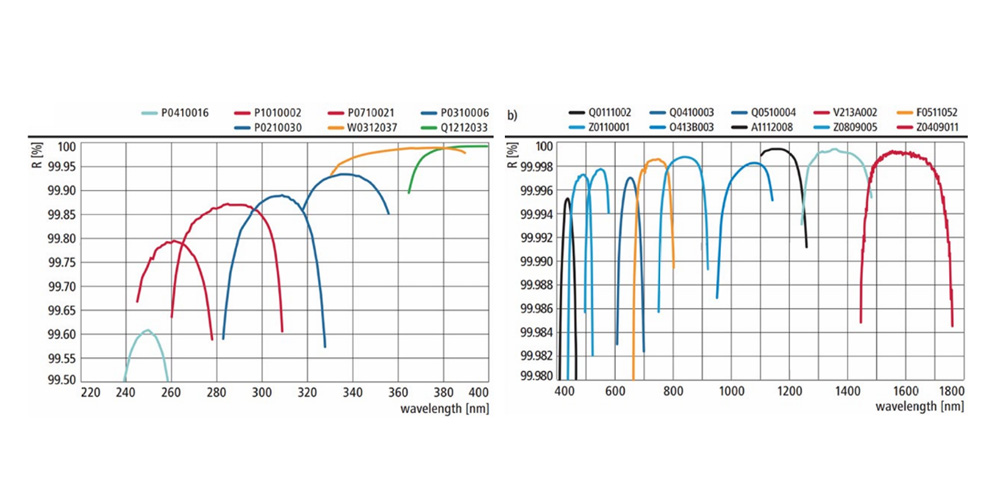

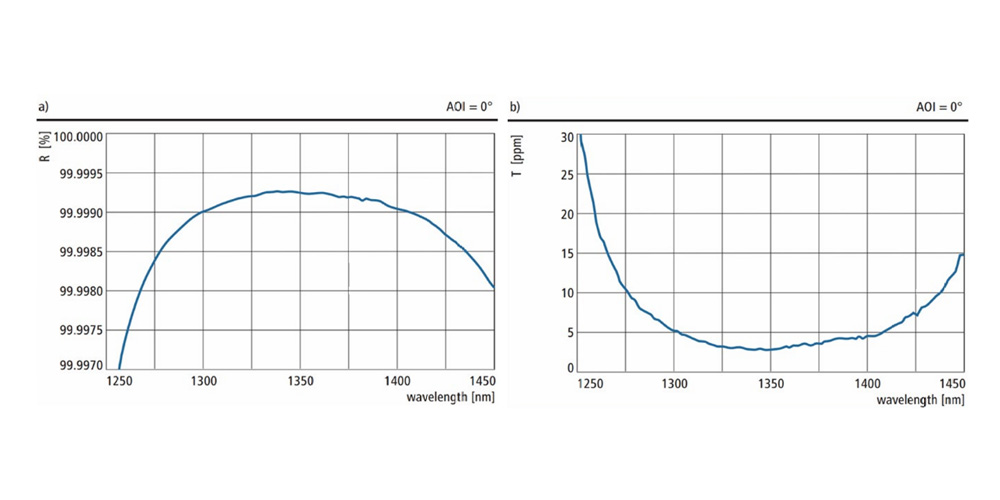

Extremely high reflectivity (R > 99.99% in the visible and near-infrared spectrum; R > 99.999% confirmed at several wavelengths between 1000-1600 nm)
Customizable central wavelength (minimum order quantity: 6 pieces)
All mirrors used for CRD experiments come with anti-reflective coating on the back
Flat and spherical curved fused silica substrates

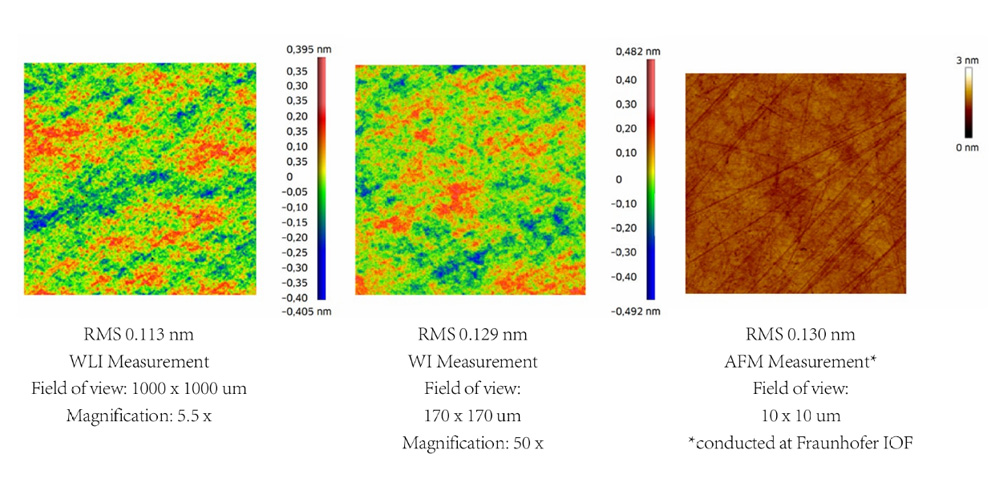

High-quality polishing, RMS roughness: ≤ 1.5 Å
| Type N0. | Substrate | Diameter (inch) | Radius of curvature | Reflectivity | AOI | Wedge | Wavelength (nm) |
| CRD-126-49-2327 | Infrasil 302 | 0.5" | 1m ROC | >99.99% | 0 | None | 2327 |
| CRD-246-49-2004 | Infrasil 302 | 1.0〞 | 1m ROC | >99.99% | 0 | None | 2004 |
| CRD-126-49-2050 | Infrasil 302 | 0.5" | 1m ROC | >99.99% | 0 | None | 2050 |
| CRD-126-49-1742 | Infrasil 302 | 0.5" | 1m ROC | >99.99% | 0 | None | 1742 |
| CRD-126-49-1650 | Corning 7980 | 0.5" | 1m ROC | >99.99% | 0 | None | 1650 |
| CRD-126-49-1600 | Corning 7980 | 0.5" | 1m ROC | >99.99% | 0 | None | 1600 |
| CRD-126-49-1550 | Corning 7980 | 0.5" | 1m ROC | >99.99% | 0 | None | 1550 |
| CRD-246-49-1550 | Corning 7980 | 1.0" | 1m ROC | >99.99% | 0 | None | 1550 |
| CRD-126-49-1512 | Corning 7980 | 0.5" | 1m ROC | >99.99% | 0 | None | 1512 |
| CRD-246-49-1434 | Infrasil 302 | 1.0" | 1m ROC | >99.99% | 0 | None | 1434 |
| CRD-126-49-0760 | Corning 7980 | 0.5" | 1m ROC | >99.995% | 0 | None | 760 |
| CRD-126-49-0760 | Corning 7980 | 1.0" | 1m ROC | >99.995% | 0 | None | 760 |
| CRD-126-49-1392 | Corning 7980 | 0.5" | 1m ROC | >99.99% | 0 | 30’ | 1392 |
| CRD-246-49-0633 | Corning 7980 | 1.0〞 | 1m ROC | >99.99% | 0 | None | 633 |
| CRD-246-49-1064 | Corning 7980 | 1.0" | 1m ROC | >99.99% | 0 | None | 1064 |
