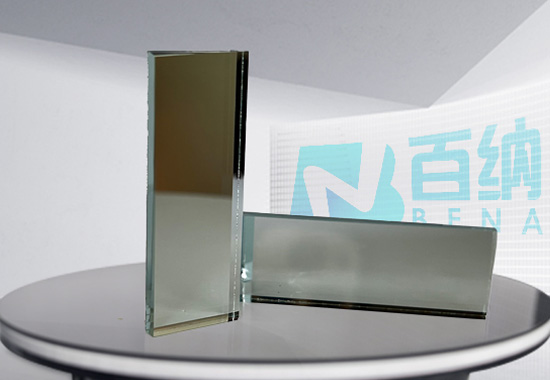

The front surface mirror is an optical element that reflects incident light by coating a layer of metallic silver (or aluminum) on the surface of optical glass through vacuum deposition. This type of mirror uses high-reflectivity materials, which can significantly increase the output power of lasers. When used as the first reflective surface, it provides undistorted reflection images without ghosting. In contrast, using an ordinary mirror as the second reflective surface not only results in lower reflectivity and lack of wavelength selectivity but also tends to produce ghosting. By using a coated front surface mirror, the resulting image is not only brighter but also precise and free of deviations, offering clearer image quality and more vivid colors.
Front surface mirrors are widely used in fields such as high-fidelity optical scanning and reflective imaging. Their working principle is based on the law of reflection, which states that when light strikes a mirror, the angle of incidence is equal to the angle of reflection. By controlling the angles of incidence and reflection, light can be directed to the desired location. The widespread application of these mirrors is attributed to their high reflectivity and precise imaging quality, making them crucial components in optical systems.
Key advantages of front surface mirrors include:
1. High Reflectivity: The metallic coating (typically silver or aluminum) on the front surface provides a high reflectivity, which is essential for applications requiring maximum light efficiency, such as laser systems.
2. No Ghosting: Since the reflection occurs on the front surface, there is no secondary reflection from the glass substrate, eliminating ghosting and ensuring a single, clear image.
3. Precision Imaging: The high-quality coating and precise manufacturing processes ensure that the reflected image is accurate and free from distortions, which is critical for high-fidelity optical applications.
4. Wavelength Selectivity: The coating can be optimized for specific wavelengths, making front surface mirrors suitable for a variety of optical applications, including those involving lasers and other monochromatic light sources.
Specifications | Commercial spec. | High precision spec. |
Material | Fused silica | |
Dimension | 5mm~1000mm | |
Dimension tolerance | ±0.1mm | ±0.05mm |
Surface quality | 60/40 | 40/20 |
Surface figure | 3λ | 2λ |
Clear aperture | >85% of dim | >90% of dim |
Coating | Enhanced Aluminum Coating | |
Optical Instruments: Used in telescopes, microscopes, and other precision optical instruments where high reflectivity and image clarity are paramount.
Laser Systems: Essential in laser optics for directing and focusing laser beams with minimal loss.
Imaging Systems: Employed in high-resolution imaging systems, including cameras and scanners, to ensure accurate and clear image capture.
Scientific Research: Utilized in various scientific experiments and setups where precise control of light paths is required.
Overall, the high performance and reliability of front surface mirrors make them indispensable in advanced optical systems and applications.
