Beryllium metal mirror

Features of Beryllium metal mirror

Optical mirrors made from beryllium have advantages over those made from other materials, primarily due to their high elastic modulus and low density. Traditional techniques for producing mirrors can be used with beryllium, but the process is challenging, and the resulting surfaces often contain defects inherent to the metal itself. Preliminary experiments indicate that under carefully selected and controlled conditions, optical mirror surfaces can be replicated on metal using vapor-deposited beryllium.

Beryllium and silicon carbide mirrors offer the highest performance in mechanical and dynamic characteristics for scanning systems. Combined with high-power coatings, they enable the highest scanning speeds. These CO2 laser mirrors are ideal for industrial applications such as marking.

Key advantages of beryllium include:

• Lightweight and low density (beryllium is 1/3 lighter than aluminum)

• High specific stiffness (approximately six times that of steel) and elasticity

• Excellent heat resistance (beryllium has the highest melting point among all light metals)

• Superior speed of sound and acoustic transparency (pure beryllium diaphragms are used in top-tier audio equipment)

• Outstanding X-ray transmittance. Beryllium is also non-magnetic

• Excellent optical reflectivity. Beryllium is used for mirrors in laser scanners

• Superior thermal and electrical conductivity

Applications for Beryllium metal mirror

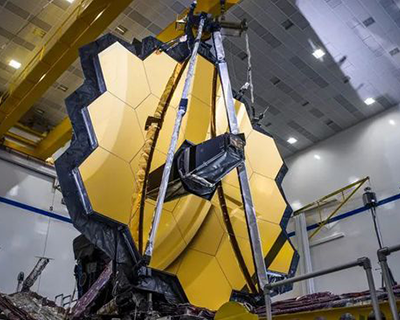

Beryllium mirrors have a wide range of applications in optical instruments such as telescopes and microscopes. In telescopes, beryllium mirrors can be used to focus light, resulting in clearer observations of celestial bodies. In microscopes, they can also be used to focus light, providing clearer views of samples. Additionally, beryllium mirrors have important applications in fields such as lasers and optical communications.

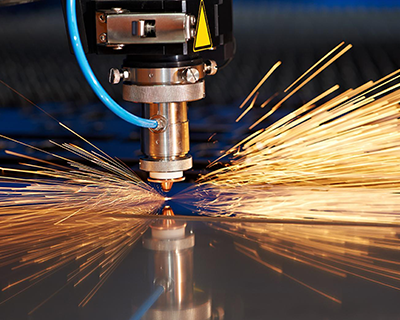

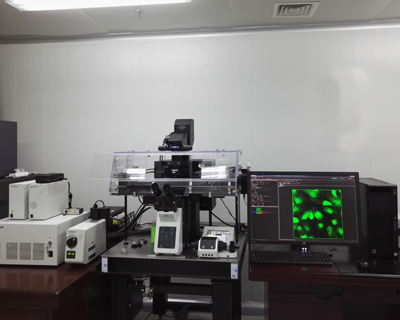

They are particularly well-suited for high-power, high-speed, and precision processing using laser scanners. Typical applications include PCB (printed circuit board) drilling, marking, medical imaging, and confocal microscopy.

In summary, beryllium mirrors are optical components with numerous excellent properties and have extensive applications in optical instruments. With the continuous advancement of science and technology, the materials and shapes of beryllium mirrors are also being constantly improved, offering better optical performance for more scientific research and industrial applications.
