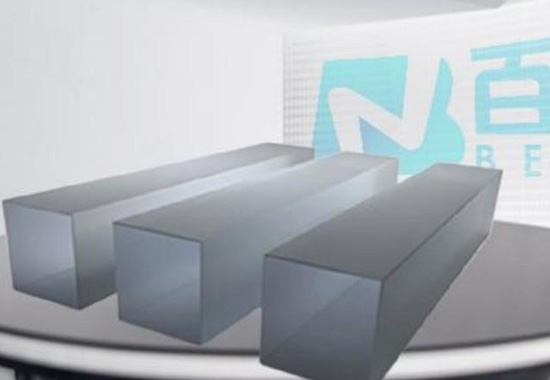

When certain media are irradiated with intense laser light, under specific conditions, the scattered light exhibits the properties of stimulated emission and is coherent radiation. This phenomenon is known as Stimulated Raman Scattering (SRS). Barium nitrate crystals are among the best solid-state materials exhibiting the Stimulated Raman Scattering effect, capable of converting the frequency of the pump laser into multiple different spectral ranges.
When certain media are irradiated with intense laser light, under specific conditions, the scattered light exhibits the properties of stimulated emission and is coherent radiation. This phenomenon is known as Stimulated Raman Scattering (SRS). Barium nitrate crystals are among the best solid-state materials exhibiting the Stimulated Raman Scattering effect, capable of converting the frequency of the pump laser into multiple different spectral ranges.
Chemical formula | Ba(NO3)2 |
Crystal structure | Cube, Space group P213 |
Lattice constant | 8.11 A |
Density | 3.244 g/cm3 |
Mohs hardness | 2.5-3 |
Thermal conductivity | 1.17 W/m/°C @ 25°C |
Coefficient of thermal expansion | 1.3 x 10-5/°C @ 25°C |
Optical and Raman performance | |
Transmission range | 350 - 1800 nm |
Refractive index | 1.575 @ 532 nm, 1.555 @ 1064 nm |
Raman frequency Stokes shift | 1047.3 cm-1 |
Raman line width | 0.4 cm-1 |
Nd: Wavelength of the Stock component of the YAG laser | |
@ 532 nm: | 504 nm, 563 nm, 599 nm, 639 nm |
@ 1064 nm: | 957 nm,1197 nm, 1369 nm 1598 nm |
@ 1319 nm: | 1159 nm, 1530 nm, 1822 nm, 2252 nm |
Conversion efficiency | Arrived 60% |
Laser damage threshold | > 500 MW/cm2for 10 ns pulse @ 1064 nm |
Specifications | |
Aperture | Max 15 x 15 mm |
Length | Max 100 mm |
Flatness | λ/4 |
Parallelism | 30 arc sec |
Perpendicularity | 5 arc min |
Scrath/dig | 20-10 |
Extinction ratio | > 20 dB |
Coating | AR coating according customers’ requirements |
Healthcare: Barium nitrate crystals have significant applications in the healthcare field, potentially being used in laser treatment and diagnostic equipment.
Raman Conversion Material: As an excellent Raman conversion material, barium nitrate crystals can efficiently convert the frequency of pump lasers into multiple different spectral ranges, making them suitable for various optical experiments and applications.
Fiber Optic Communications: Barium nitrate crystals perform exceptionally well in fiber optic communications, operating within the 1.535-1.556 micrometer wavelength range, which is ideal for fiber optic communication.
Free-Space Optical Communications: In free-space optical communications, barium nitrate crystals are also an excellent functional material. They can operate within the atmospheric window wavelength range and are safe for human eyes, making them suitable for long-distance free-space optical communication.
These characteristics make barium nitrate crystals widely applicable in various high-tech fields.
