Spherical Aberration and Cylindrical Aberration in Spherical Lenses

Spherical aberration and cylindrical aberration are two key concepts used to describe the imaging quality of spherical lenses. They represent different types of aberrations that occur during the imaging process.

Spherical Aberration

Spherical aberration, also known as spherical aberration, refers to the phenomenon where light rays emitted from an on-axis object point pass through a spherical lens. Due to the different convergence capabilities of the central and edge regions of the lens, rays of different apertures intersect at different positions on the image plane, forming a circular diffused spot rather than an ideal point image. Simply put, spherical aberration means that light rays emitted from an on-axis object point cannot converge to a single point on the image plane after passing through the lens, but instead form a blurred circle. Spherical aberration is one of the main factors limiting the resolving power of a lens.

Characteristics of Spherical Aberration:

Monochromatic Aberration: It is the only monochromatic aberration present in imaging on-axis points.

Influencing Factors: The magnitude of spherical aberration is closely related to the lens's aperture angle, radius of curvature, refractive index, and other factors.

Correction Difficulty: Spherical aberration in a single lens cannot usually be completely eliminated, but it can be effectively reduced by combining multiple lenses or using aspherical lenses.

Cylindrical Aberration

In conventional descriptions of optical lenses, "cylindrical aberration" is not a directly corresponding term. However, in similar concepts, "cylindrical aberration" or aberrations in the cylindrical direction of a lens may be related to "cylindrical aberration," though this is not a widely used standard term in the field of optics. More commonly, discussions revolve around "cylindrical lenses" and their associated characteristics.

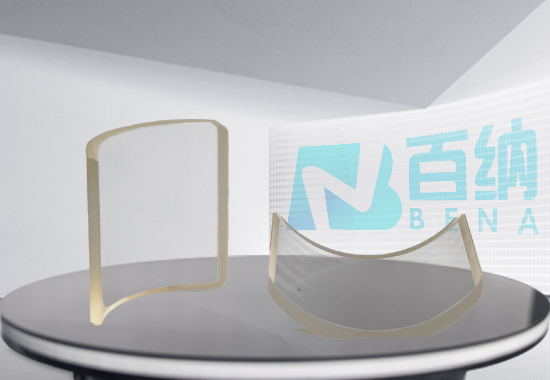

Characteristics of Cylindrical Lenses: Cylindrical lenses are aspherical lenses that have focusing or diverging capabilities in one direction (typically referred to as the axial direction) while having minimal effect on light in the perpendicular direction. These lenses are mainly used in applications requiring one-dimensional beam shaping, such as linear detector illumination and barcode scanning. While cylindrical lenses do not directly produce "cylindrical aberration," they may introduce other aberrations related to their cylindrical shape during the imaging process. These aberrations are typically related to the lens's design, manufacturing process, and usage conditions.

Spherical aberration arises from the different convergence capabilities of various lens regions, resulting in a circular diffused spot. "Cylindrical aberration" is not a standard optical aberration term, but in similar contexts, it may involve the characteristics of cylindrical lenses and their associated aberrations. Understanding and accurately using relevant optical terminology is crucial for describing the imaging quality and characteristics of lenses in practical applications.

Bena Optics offers high-precision optical and cylindrical lenses to meet the demands of various complex optical applications. Whether reducing spherical aberration or optimizing the aberration characteristics of cylindrical lenses, we provide customized solutions to ensure your optical systems achieve optimal performance.
