Bena Optics’ Expertise in Polarization

Polarization is a fundamental property of light that describes the orientation of the electric field vector as the wave propagates. The most common polarization states are elliptical, linear, and circular polarization. Each state has distinct characteristics and is used in various optical applications, ranging from imaging and sensing to communication and laser systems.

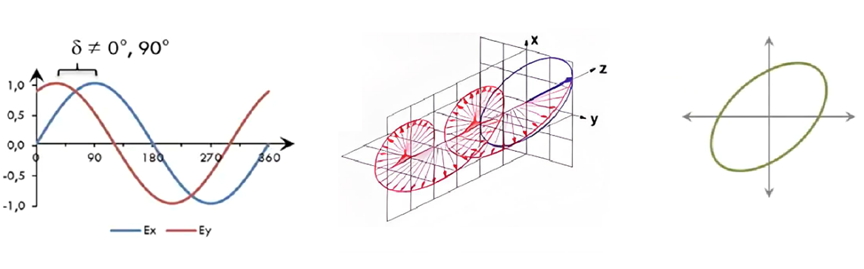

Elliptical Polarization: The General Polarization State

Elliptical polarization is the most general form of polarization. In this state, the two orthogonal electric field components (e.g., along the x and y axes) have a constant phase difference, but this phase difference is not an integer multiple of π/2. The amplitudes of the two components can be equal or different.

Phase Difference: The phase difference between the two components results in a rotation of the electric field vector as the wave propagates.

Trajectory: When viewed along the propagation direction, the tip of the electric field vector traces an elliptical path.

Elliptical polarization encompasses both linear and circular polarization as special cases, making it a fundamental concept in understanding polarization behavior.

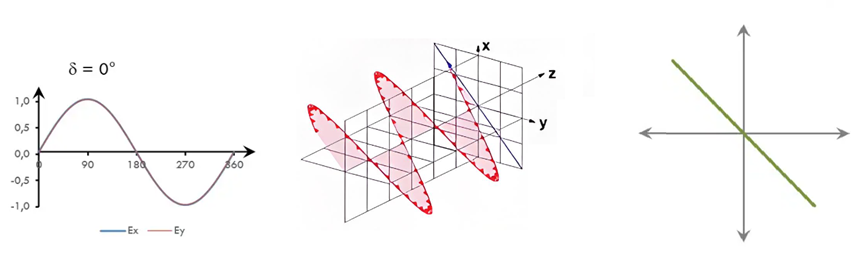

Linear Polarization: A Special Case of Elliptical Polarization

Linear polarization is a specific form of elliptical polarization where the two electric field components are perfectly in phase (or have a phase difference of π, indicating complete opposition). In this case:

No Phase Shift: The two components oscillate in the same plane without any phase difference.

Trajectory: When viewed along the propagation direction, the electric field vector traces a straight line, hence the term “linear.”

Amplitude Matching: If the amplitudes of the two components are equal, the linear polarization is symmetric.

Linear polarization is commonly used in applications such as optical communication, imaging, and laser systems, where the light needs to be aligned with a specific direction.

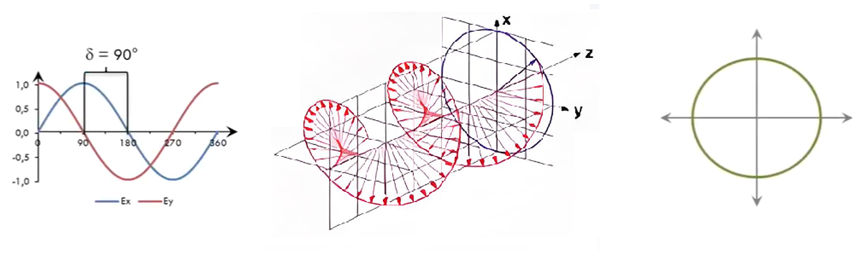

Circular Polarization: Another Special Case of Elliptical Polarization

Circular polarization is another special form of elliptical polarization, characterized by a phase difference of exactly 90 degrees (π/2) between the two electric field components. In addition:

Equal Amplitudes: The amplitudes of the two components must be identical to achieve circular polarization.

Trajectory: When viewed along the propagation direction, the electric field vector traces a circular path.

Direction of Rotation: The polarization can be either right-handed circular (clockwise) or left-handed circular (counterclockwise), depending on the direction of the phase shift.

Circular polarization is widely used in applications such as satellite communication, 3D imaging, and polarization-sensitive materials.

Comparison of Polarization States

Elliptical Polarization:

1. Used in optical communication systems to transmit data efficiently.

2. Applied in polarization-sensitive devices such as liquid crystal displays (LCDs).

 Linear Polarization:

1. Common in polarizing filters for cameras, sunglasses, and optical sensors.

2. Essential in laser systems for precise alignment and beam control.

Circular Polarization:

1. Critical in satellite communication to mitigate signal loss due to atmospheric effects.

2. Used in 3D cinema glasses to separate left and right eye images.

The Importance of Understanding Polarization in Optical Systems

Polarization is a fundamental property of light with significant implications for the design and performance of optical systems. Understanding the differences between elliptical, linear, and circular polarization is essential for selecting the appropriate polarization state to meet specific application requirements.

As optical technologies continue to advance, the ability to control and manipulate polarization states will remain a critical capability in fields ranging from communication and imaging to laser and sensor systems.

Bena Optics specializes in designing and manufacturing optical components that enable precise control of polarization states. Our products include polarizing filters, waveplates, and polarization-sensitive coatings, all tailored to meet the demands of advanced optical systems.

With a commitment to innovation and quality, Bena Optics provides solutions that enhance performance in a wide range of applications, ensuring optimal polarization control for our customers.
