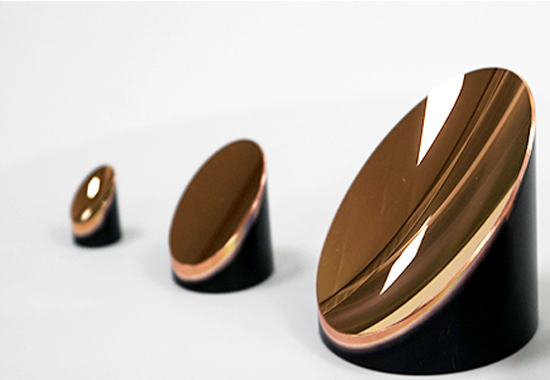

Introduction to Off-Axis Parabolic Mirrors (OAP)

Off-Axis Parabolic Mirrors (OAPs) are a specialized subset of parabolic mirrors designed to focus or collimate light without introducing spherical aberration. Unlike traditional on-axis parabolic mirrors, OAPs are positioned off the center of symmetry of an axisymmetric paraboloid, making them ideal for applications requiring precise optical performance.

OAPs are widely used in advanced optical systems, including femtosecond lasers, infrared (IR) systems, and terahertz (THz) applications. Their unique design allows them to focus collimated beams onto a single focal point or convert light from a point source into a parallel beam, making them indispensable in high-precision optical setups.

How Off-Axis Parabolic Mirrors Work?

Off-axis parabolic mirrors from the professional off axis parabolic mirror manufacturers operate based on the principle of reflection, leveraging the geometry of a paraboloid to achieve superior focusing and collimation. When a collimated beam is incident perpendicular to the mirror’s surface, the reflected light converges at a focal point. Conversely, placing a point light source at the focal point results in a collimated beam.

Key Features of OAPs:

Spherical Aberration-Free Focusing: Ensures sharp and precise focusing of collimated light.

Collimation Capability: Converts light from a point source into a parallel beam without introducing distortion.

Off-Axis Angle: The angle between the focused and collimated beams determines the off-axis angle. Custom OAPs with different off-axis angles can be manufactured by adjusting the geometry of the parent paraboloid.

Applications of Off-Axis Parabolic Mirrors

Off-axis parabolic mirrors are widely used across various industries due to their exceptional optical performance:

Femtosecond Lasers:
OAPs are critical in high-precision laser systems, enabling accurate beam shaping and focusing for research and industrial applications.

Infrared and Terahertz Systems:
Infrared and terahertz imaging systems rely on OAPs for focusing and collimating light, ensuring high-resolution imaging and sensing.

Astronomical Observation:
OAPs are used in telescope systems for precise light collection and imaging, enhancing the quality of astronomical observations as optics in astronomy.

Spectroscopic Detection:
OAPs improve the resolution and accuracy of spectroscopic measurements by minimizing aberrations.

Concentrating Solar Power Systems:
OAPs are employed to focus solar energy onto receivers, boosting the efficiency of solar power systems.

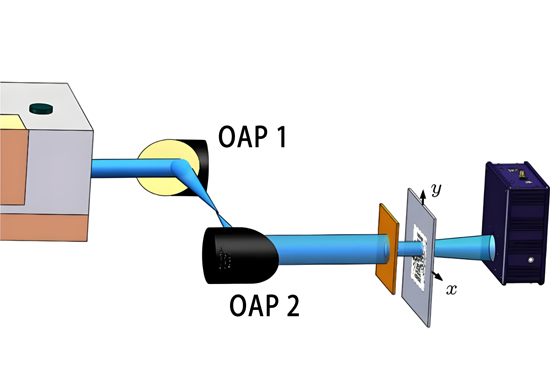

Beam Expanders and Projection Systems:
OAPs ensure uniform and precise beam expansion in optical projection and display systems.

Transmitting and Detecting Equipment:
OAPs are used in equipment for terahertz wave transmission and detection, enabling applications in non-destructive testing and security screening.

Advantages of Off-Axis Parabolic Mirrors

Compared to traditional lenses, off-axis parabolic mirrors offer several key advantages:

No Spherical Aberration: Ensures sharp and distortion-free focusing.

No Chromatic Aberration: Ideal for monochromatic or wavelength-specific applications.

Reflective Design: Eliminates phase delays and absorption losses associated with transmitting optical elements.

High Surface Accuracy: Achieves <50 Å or <100 Å RMS surface roughness for precise optical performance.

Coatings for Off-Axis Parabolic Mirrors

Off-axis parabolic mirrors are available with a range of coatings to suit different wavelength requirements:

UV Enhanced Aluminum Coating (250–450 nm): Optimized for ultraviolet applications.

Silver Coating with Protective Layer (450 nm–20 µm): Provides excellent reflectivity in the visible to mid-infrared range.

Aluminum Coating with Protective Layer (450 nm–20 µm): A cost-effective option for broadband applications.

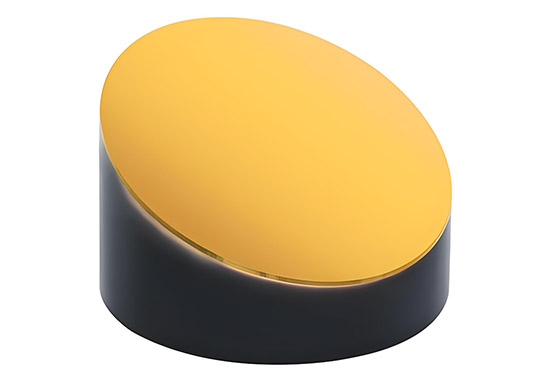

Gold Coating with or without Protective Layer (800 nm–20 µm): Ideal for high-power infrared and terahertz systems.

Conclusion: Off-Axis Parabolic Mirrors in Advanced Optical Systems

Off-axis parabolic mirrors are indispensable components in modern optical systems, offering precise focusing and collimation without introducing aberrations or losses. From femtosecond lasers and infrared systems to terahertz applications, OAPs deliver exceptional performance in a wide range of industries.

Their reflective design, high surface accuracy, and customizable coatings make them the preferred choice for high-precision optical setups. Whether in astronomical off axis parabolic telescope or terahertz wave detection equipment, off-axis parabolic mirrors play a critical role in advancing cutting-edge optical technologies.

Bena Optics is a leading provider of high-quality off-axis parabolic mirrors, designed to meet the demanding requirements of advanced optical systems. Our OAPs are manufactured using state-of-the-art techniques to ensure superior surface accuracy and optical performance.

With a focus on innovation and precision, Bena Optics’ off-axis parabolic mirrors are ideal for applications in femtosecond lasers, infrared imaging, and terahertz systems. Explore our range of OAPs and experience the difference that advanced optical technology can make.

Off-axis parabolic mirrors are a testament to the power of precision engineering in optical systems. By eliminating aberrations and enhancing focus, they enable breakthroughs in fields ranging from laser physics to astronomy.
