Advantages of Aspherical Elements in Motorized Zoom Lenses

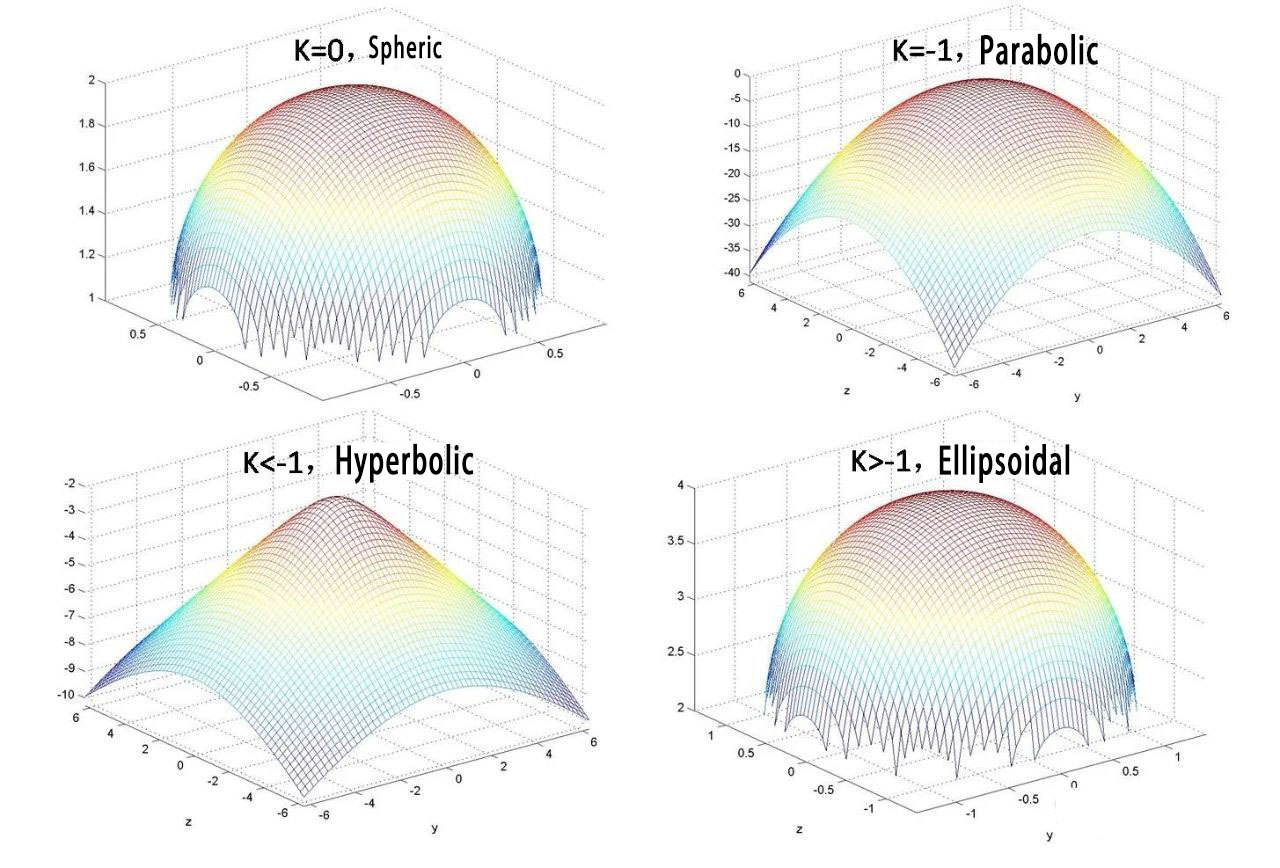

Aspherical optical elements (aspheres) are transformative components in modern optical systems, including motorized zoom lenses. Unlike traditional spherical lenses, which feature uniform curvature, aspheres have a continuously varying curvature from the center to the edge. This unique design enables superior aberration correction, system miniaturization, and enhanced optical performance. Aspheric lenses are now widely used in applications ranging from consumer electronics to aerospace and military systems.

Aspherical optical elements offer several key benefits that make them indispensable in motorized zoom lenses and other optical systems:

1. Aberration Correction:

Spherical Aberration Elimination: Aspheres focus parallel light rays to a sharp point, whereas spherical lenses cause image blur due to spherical aberration. This ability allows aspheres to replace multiple spherical lenses, simplifying lens designs.

Example: A 10× zoom lens design for smartphones achieved a compact profile (thickness <6.5 mm) by incorporating aspheric elements instead of conventional spherical components.

2. System Miniaturization and Cost Efficiency:

Compact Designs: By replacing 5–6 spherical lenses with 1–2 aspheres, systems can be made lighter, smaller, and more cost-effective. This reduction in component count lowers material costs, mechanical tolerances, and calibration steps while maintaining high performance.

Example: Smartphone periscope zoom lenses leverage aspheres to deliver high-resolution imaging in constrained spaces.

3. Enhanced Optical Performance:

Tailored Curvature: Aspheres allow for precise adjustments in curvature, enabling superior performance in systems with large apertures, wide fields of view, or stringent size requirements.

Applications: Aspheres are ideal for high-precision tasks such as laser guidance, satellite imaging, and medical optics.

The complex geometry of aspherical lenses requires advanced manufacturing techniques. Key methods include:

1. Material Removal Methods:

CNC Milling/Polishing: A standard method for prototyping and low-volume production. CNC machines offer high precision and automated adjustments for complex shapes.

Ion Beam/Magnetorheological Polishing: Used for ultra-smooth surface finishes, particularly in high-end applications like aerospace and defense.

2. Material Shaping Methods:

Injection Molding: A cost-effective approach for mass production, but it requires specialized molds and precise temperature control.

Glass Hot Pressing: Suitable for high-temperature-resistant lenses, often used in infrared applications.

3. Additive Methods:

Vacuum Coating Replication: Creates precise surface layers for replication, enabling high-quality aspheric lenses with minimal material waste.

Applications of Aspherical Optical Elements

Aspherical elements are pivotal in a wide range of industries:

1. Aviation and Satellite Systems:

Lightweight, high-performance optics enable imaging and guidance systems for drones, satellites, and space exploration missions.

2. Consumer Electronics:

Smartphone cameras, particularly periscope zoom lenses, benefit from compact, high-resolution designs enabled by aspheres.

3. Infrared Detection and Laser Systems:

Precision aspherical lenses are used in military and industrial applications, such as infrared sensors and laser targeting systems.

4. Medical Optics:

Aspheres enhance the performance of endoscopes, surgical microscopes, and diagnostic imaging devices.

5. Automotive LIDAR:

Aspherical lenses improve the accuracy and range of LiDAR systems in autonomous vehicles.

Aspherical optical elements are revolutionizing motorized zoom lenses and other optical systems by enabling compact, high-performance designs. Their ability to correct aberrations, reduce component count, and adapt to advanced manufacturing techniques makes them indispensable in both specialized and consumer applications.

As technology continues to evolve, aspherical lenses are expected to play an even greater role in driving innovation in optical engineering. From consumer electronics to aerospace and defense, their impact on optical systems is profound.
