Alignment Cube: The Invisible Ruler of Aerospace—How Bena Optics Redraws Precision Boundaries

In satellite assembly workshops, the installation accuracy of an antenna determines its "vision" in space. At the heart of this micron-level precision lies a palm-sized metal cube: the Alignment Cube. Composed of three orthogonal reflective mirrors, this unassuming device is the cornerstone of modern industrial metrology. Each mirror boasts a flatness of λ/20 (λ=632.8nm) and perpendicularity errors below ±3 arcseconds—equivalent to 1/10,000th the angle of two parallel human hairs.

From Orbit to Ocean Depths: The Coordinate Empire of Alignment Cubes

In aerospace, Alignment Cubes anchor spatial coordinate systems. For example, satellite cabins align their OY and OZ axes using quadrant markings, enabling camera and antenna installations with 0.02mm accuracy. When obstructions block direct measurements, engineers deploy virtual cube mirror technology, constructing a coordinate system from two unrelated vectors with in <2 arc seconds error—akin to hitting a coin-sized target 10km away.

Beyond space, Optical Alignment Cube empowers industries like shipbuilding. Traditional rotor alignment in generators took days using mechanical methods; now, with cubes and total stations, efficiency jumps by 70%. Remarkably, during thermal testing, a radar antenna’s 0.1-arcsecond thermal drift detected by cubes matched simulations within 15% error, cementing their role as validation benchmarks.

Optical Secrets: Balancing Precision and Anti-Disturbance

The cube’s power stems from its parallel reflection and low misalignment sensitivity. Under ideal conditions, incident and reflected beams remain parallel, stabilizing laser resonators. However, a 1-arcsecond mirror tilt shifts beams by 0.05mm—a flaw Bena Optics mitigates with ion beam polishing, slashing perpendicularity errors to ±2 arc seconds.

Bena Optics: Shattering Manufacturing Limits

As an industry leader, Bena Optics redefines cube fabrication:

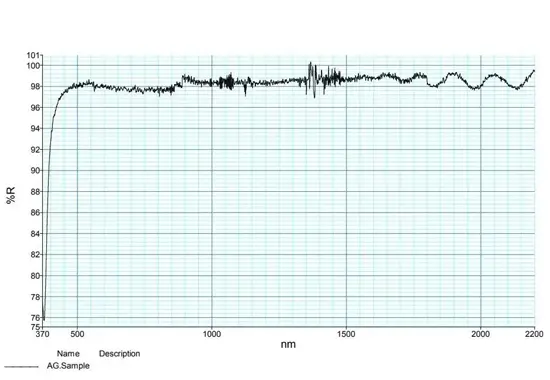

• Ultra-Precision Surfaces: Magnetron sputtering and interferometry achieve R >99.8% while cutting weight by 60%, critical for satellite dynamic monitoring.

• Smart Virtual Cubes: Machine learning optimizes virtual cube modeling, reducing errors from 5 to 2 arc seconds and trimming payload weight by 30% in satellite installations.

• Real-Time Thermal Monitoring: Integrated laser trackers and photogrammetry validate structural stiffness (e.g.,10μm/m) with 50% faster data feedback.

Future Horizons: From Static Tools to Dynamic Sensors

With booming commercial space ventures, cubes evolve into dynamic sensing nodes. Bena Optics' coated cubes now monitor real-time thermal shifts in low-orbit satellites, enabling agile attitude control. Experts predict next-gen cubes will embed nano-sensors and edge computing, becoming autonomous "neural endpoints" for space systems. Quality optical components for sale at competitive prices now!

“The limits of Alignment Cubes define the limits of industrial precision,” says Bena Optics’ lead engineer. On this invisible frontier, every micron of progress reshapes humanity’s reach into the cosmos.
