Precision 90° Beam Deflection with Pentagonal Prisms

Pentagonal prisms are essential components in optical systems, designed to deflect light beams by precisely 90° while maintaining image orientation and stability. These prisms are widely used in applications ranging from single-lens reflex (SLR) cameras to alignment and measurement instruments.

Structure and Functional Principles of Pentagonal Prisms

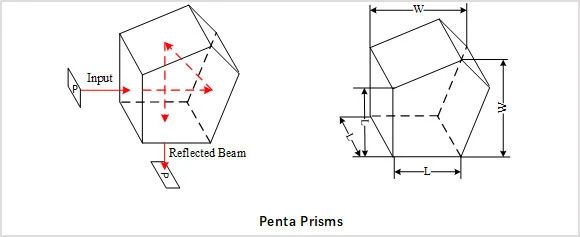

A pentagonal prism consists of two refractive surfaces that are 90° apart and two reflective surfaces that form 45° angles. When light enters the prism through one of the 90° surfaces, it undergoes reflection on the two 45° surfaces before exiting through the other 90° surface. The result is a perfect 90° deflection of the light beam, with the incident and exiting light rays forming a right angle.

This unique design ensures that the image remains upright and retains its original orientation, making optical prism types ideal for applications where image inversion or lateral inversion must be avoided.

Advantages of Pentagonal Prisms in Optical Systems

Pentagonal prisms offer several key advantages over other beam deflection methods:

Image Orientation Preservation: Unlike some other reflective systems, penta prisms do not invert the image or alter its handedness. This makes them particularly suitable for applications like SLR camera viewfinders, where maintaining the correct image orientation is critical.

Precise 90° Deflection: Unlike single-reflection right-angle prisms, pentagonal prisms ensure that the input beam is precisely deflected by 90°, regardless of the prism’s installation orientation. This stability is a significant advantage in instruments like aligners, collimators, and rangefinders.

The double reflections within the prism contribute to its robustness, as the system is less sensitive to alignment errors compared to setups using two mirrors. This makes pentagonal prisms a preferred choice for precision optical systems.

Applications and Key Features of Pentagonal Prisms

Pentagonal prisms are widely used in:

SLR Camera Viewfinders: To provide an upright, non-inverted image to the photographer.

Alignment Instruments: Such as plumb bobs, aligners, and laser collimators, where precise 90° beam deflection is required.

Measurement Tools: Including laser rangefinders and Theodolites, where maintaining correct image orientation is critical.

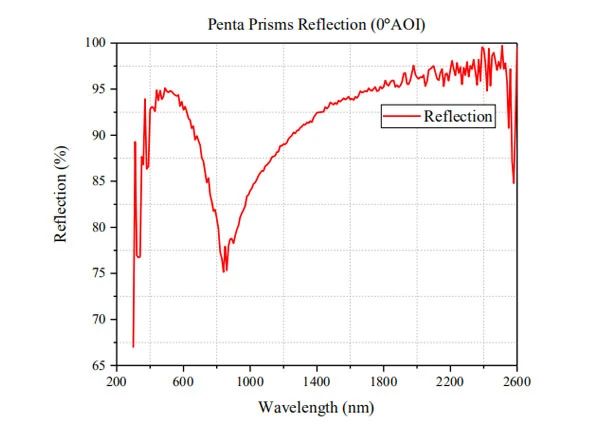

These prisms are also characterized by their reflective coatings, which are designed to ensure efficient reflection of light. Since the internal reflections within the prism are not caused by total internal reflection (TIR), both reflective surfaces are coated with high-reflectivity coatings. The refractive surfaces are coated with anti-reflective (AR) coatings to minimize light loss and ensure optimal transmission efficiency.

Bena Optics specializes in the design and manufacturing of precision optical components, including pentagonal prisms. Our prisms are manufactured using advanced optical fabrication techniques, ensuring high-precision alignment and exceptional optical performance.

Whether for use in SLR cameras, alignment instruments, or measurement tools, Bena Optics' s roof pentaprism prisms deliver reliable, high-quality beam deflection and image orientation. Our commitment to precision and quality ensures that our components meet the demanding requirements of advanced optical systems.

By leveraging our expertise in optical engineering, Bena Optics continues to innovate and deliver solutions that set new standards in precision optics. Our pentagonal prisms are a testament to our dedication to providing high-performance components for a wide range of applications.

Pentagonal prisms from Bena Optics-the professional optical prism manufacturers provide precise 90° beam deflection while preserving image orientation and stability, making them ideal for a wide range of optical applications. With our advanced manufacturing capabilities and commitment to precision, Bena Optics ensures that our components deliver optimal performance in even the most demanding environments.
