The Role of Collimation and Focusing in Laser Applications

In the field of laser applications, two essential concepts often arise: collimation and focusing. These terms are frequently encountered, yet they can be confusing for those new to laser technology. For instance, in laser marking, cutting, welding, and cleaning processes, the object to be processed must be placed at the focal point to ensure the energy is concentrated. This process requires focusing, and the lens used in such cases is typically referred to as a field lens.

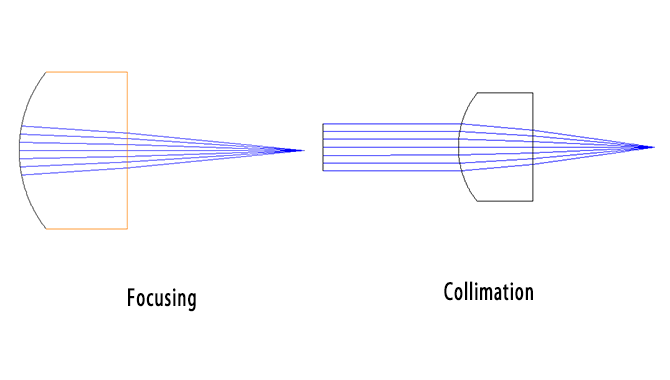

On the other hand, collimating lenses are commonly placed after optical fibers to convert the divergent light emitted by the fiber into a collimated beam with a minimal divergence angle. The distinction between collimation and focusing can be illustrated through the following diagrams.

Distinguishing Collimation from Focusing

As shown in the diagrams, the orientation of the lenses plays a crucial role in achieving the desired outcome. When using a plano-convex lens for focusing, the convex surface is typically oriented toward the incoming light. Conversely, for collimation, the flat surface is oriented toward the incoming light. This difference in orientation ensures that the lens behaves appropriately for each specific purpose.

Focusing in Laser Processing: The Role of Field Lenses

In laser processing applications such as cutting, welding, and marking, achieving precise focus is critical. The focal point is the region where the laser energy is most concentrated, ensuring efficient processing and high-quality results. The field lens is designed to focus the laser beam onto the target object, providing the necessary energy density for the desired task.

Bena Optics offers a wide range of high-precision field lenses optimized for various laser applications. These lenses are manufactured with exceptional optical quality, ensuring minimal aberrations and consistent performance across different wavelengths and power levels.

Collimation in Fiber-Optic Systems: The Role of Collimating Lenses

In fiber-optic systems including fiber optic prism and fiber beam splitter, collimating lenses are essential for converting the divergent light emitted by the fiber into a collimated beam. This process is critical for maintaining a small divergence angle, which is necessary for applications such as optical communication, laser scanning, and medical laser systems.

Bena Optics’ collimating lenses are designed to provide precise collimation, ensuring that the beam remains parallel over long distances. These lenses are available in various sizes and focal lengths to accommodate different fiber diameters and optical requirements.

Gaussian Beam Characteristics in Laser Optics

Lasers produce Gaussian beams, which are characterized by their intensity distribution. Near the waist of the Gaussian beam, the laser can be approximated as a near-parallel beam. However, at a certain distance from the waist, the laser behaves more like a point source. Understanding these properties is essential for designing optical systems that require both collimation and focusing.

Bena Optics' Expertise: High-Precision Lenses for Collimation and Focusing

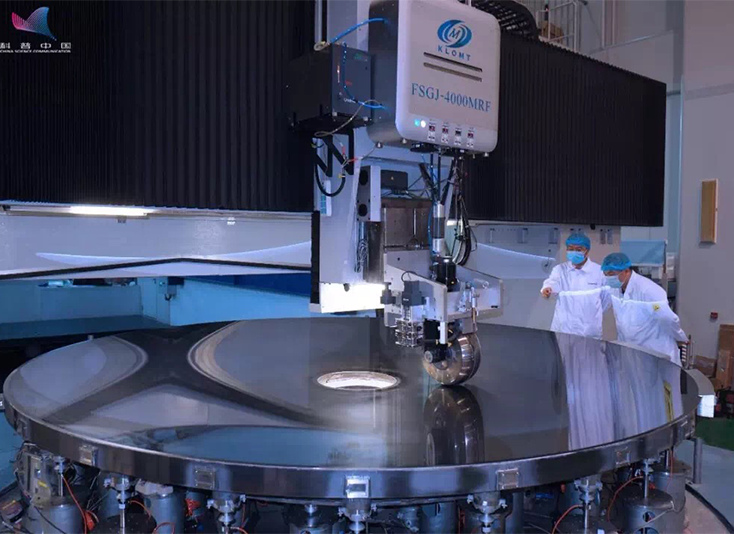

Bena Optics specializes in the production of high-precision laser optical lens for both collimation and focusing applications. Our lenses are manufactured using advanced optical technologies, including ultra-precision grinding, polishing, and coating techniques. These processes ensure that our lenses meet the highest standards for optical performance, durability, and reliability.

Whether you need a field lens for laser processing or a collimating lens for fiber-optic systems, Bena Optics offers a comprehensive range of products tailored to your specific needs. Our lenses are designed to work seamlessly with various laser types, including CO2, diode, and solid-state lasers, ensuring optimal performance in a wide range of applications.

The concepts of collimation and focusing are fundamental to laser technology, with each serving a distinct purpose in various applications. Bena Optics’ expertise in high-precision lens manufacturing ensures that our products deliver exceptional performance in both focusing and collimation tasks.

By leveraging our advanced manufacturing capabilities and deep understanding of laser optics, Bena Optics continues to drive innovation in the field of laser applications. Our commitment to quality and precision makes us a trusted partner for industries ranging from manufacturing to healthcare and beyond.
