Pentagonal Prisms: Precisely Deflecting Light by 90° for Optical Precision

Pentagonal prisms are optical components designed to precisely deflect light by 90° while maintaining the orientation of the image. This unique capability makes them indispensable in various optical systems, from cameras to alignment instruments.

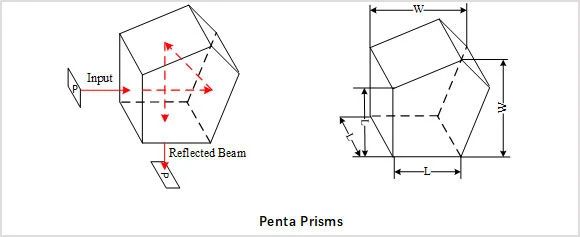

A pentagonal prism consists of two refractive surfaces at 90° and two reflective surfaces at 45° angles. When light enters perpendicularly through one of the 90° surfaces, it reflects off the two 45° surfaces and exits through the other 90° surface, creating a 90° deflection between the incoming and outgoing light beams.

• Two Refractive Surfaces: At 90° angles.

• Two Reflective Surfaces: At 45° angles.

• 90° Deflection: Maintains image orientation without inversion or reversal.

Advantages of Pentagonal Prisms

Image Orientation: Unlike right-angle prisms, pentagonal prisms do not invert or reverse the image, making them ideal for applications where image integrity is critical.

Stability: The double reflection within the prism ensures that the 90° deflection is precise and unaffected by installation errors. This makes pentagonal prisms more stable than systems using two mirrors.

Versatility: Commonly used in single-lens reflex (SLR) cameras for viewfinding and as angle-setting devices in various optical instruments like plumb bobs, collimators, and rangefinders.

Reflection and Coating

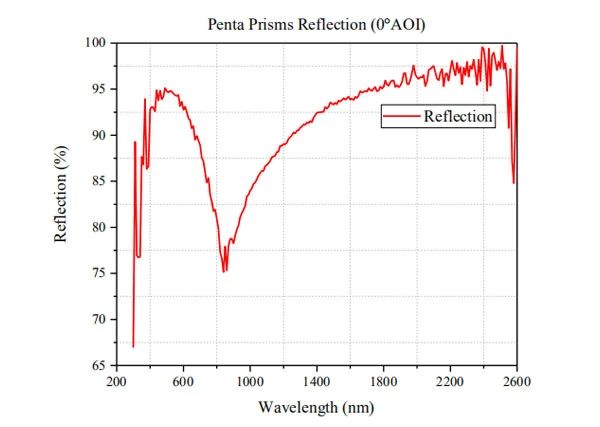

The internal reflection within the pentagonal prism is not total internal reflection due to the angles of incidence being less than the critical angle. Therefore, both reflective surfaces are coated with reflective films, and the incident and exit surfaces are coated with anti-reflective films to minimize reflection.

Applications of Pentagonal Prisms

Pentagonal prisms are widely used in:

Photography: SLR cameras for accurate viewfinding.

Alignment Instruments: Plumb bobs, collimators, and rangefinders for precise angle setting.

Calibration Devices: Ensuring accurate alignment and measurement in various optical systems.

Bena Optics offers high-quality pentagonal prisms designed to meet the exacting standards of optical precision. Our prisms are crafted to provide accurate 90° light deflection without compromising image orientation, making them ideal for a wide range of applications.

Precision Engineering: Our pentagonal prisms are meticulously manufactured to ensure the highest levels of accuracy and reliability.

Wide Range of Applications: From photography to alignment instruments, our prisms are designed to enhance performance across various fields.

Advanced Coatings: Reflective and anti-reflective coatings ensure optimal functioning and minimal loss of light.

Pentagonal prisms offer unparalleled precision in deflecting light by 90° while maintaining image integrity, making them a crucial component in many optical systems. With Bena Optics, you can access high-quality pentagonal prisms tailored to meet your specific needs. Whether you are in photography, alignment, or calibration, our prisms provide the perfect solution for your optical requirements.

Visit our website to explore our full range of optical products and discover how we can help you achieve optimal performance in your optical systems.

By understanding the unique characteristics and applications of pentagonal prisms, you can make an informed decision that aligns with your application's specific requirements. Partner with Bena Optics for superior optical solutions and unparalleled performance.
