The Role of Bena Optics Dome in Missile Guidance Heads

Since the advent of missiles, their variety and complexity have grown significantly. One common observation is that some missile warheads feature a window-like structure at the front, while others do not. This difference is not arbitrary but is closely tied to the guidance mode of the missile.

Guidance Modes and Their Requirements:

Missiles employ various guidance modes, including passive infrared, passive radar, TV guidance, semi-active laser guidance, and command guidance. Each of these modes requires a clear "line of sight" that the seeker can utilize to track the target. This is similar to a car windshield, which serves both to protect and to allow visibility. However, unlike a windshield, the seeker in a missile is often delicate and its shape is designed to optimize its performance. Therefore, a rectifying cover, such as the Bena Optics Dome, is added to protect the seeker while also allowing the transmission of necessary light and waves.

Visible-Light Guidance:

In visible-light guidance systems, for instance, a transparent glass window is essential to allow the camera to observe and track the target. This window must be designed to ensure optimal light transmission without compromising the structural integrity of the missile.

Infrared Guidance:

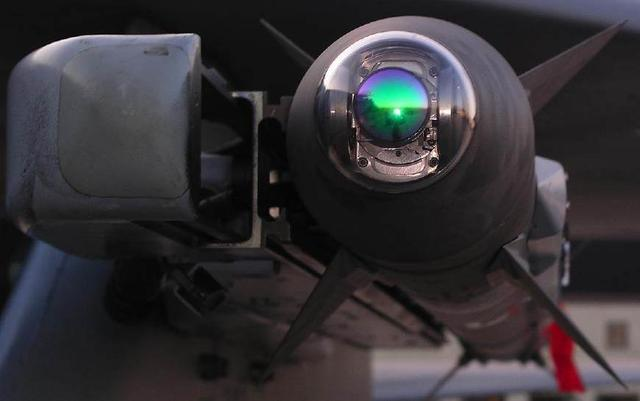

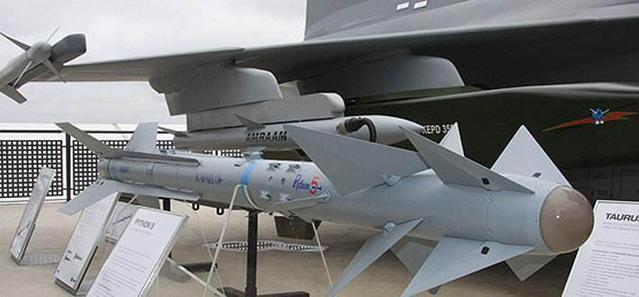

Infrared guidance, on the other hand, requires the transmission of specific wavelengths of infrared light. The window in this case may not be transparent to visible light but must be capable of transmitting the required infrared wavelengths. For example, the AIM-9L seeker has an opaque window, while modern combat missiles like the Thunderbolt 10 and AIM-9X require windows that are transparent over a broader range of wavelengths to enhance anti-interference capabilities.

Radar Guidance:

Radar-guided missiles need to transmit specific wavelengths of electromagnetic waves, which are different from visible light. Consequently, their windows are designed to be opaque to visible light but transparent to the required radar frequencies.

Command Guidance:

Missiles using command guidance only need to "hear" instructions from the control system to adjust their direction. As a result, their front fairings do not require any special treatment or windows.

The inclusion of windows in missile warheads, such as the Bena Optics Dome, is a critical design element that ensures the effective operation of various guidance systems. Understanding the specific requirements of different guidance modes helps in appreciating the intricate design and functionality of missile warheads.

By understanding the role of the Bena Optics Dome and the principles behind missile guidance windows, we gain a deeper insight into the complexity and sophistication of modern missile technology.
